Reverse Pulse Test Rig

Reverse Pulse Test Rigs have the facility to mount 6 filters where there is an option of changing mounting plate as per different mounting needs of filter elements and diaphragm solenoid valves that are connected to pulsing nozzles mounted on air tank. Apart from these, the other featured specifications of these test rigs include 18” suction inlet to test rig as well as presence of central processing unit that finds usage for noting down the DOP and pressure count observations of these test rigs.

Specifications

• MS Fabricated structure
• Facility to mount 6 filters
• Mounting plate can be changed as per different mounting of the filter elements
• Diaphragm solenoid valve connected to pulsing nozzles are mounted on air tank
• 18” suction inlet to the test rig
• Central processing unit can be noted the DOP and pressure count.

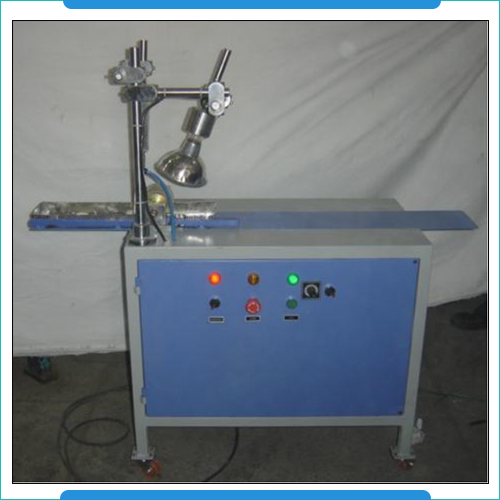

The Dust Feeders are designed to increase the efficiency of the process and are available with stainless steel turn table tray with groove width of 120mm. Further, these come with features like online heating of dust by IR bulb, variable speed DC drive unit, facility to tilt dust pickup tube and well featured control panel option that allows easy handling of the system.

Specifications

• SS turn table tray groove width 120mm.
• Online heating of dust by IR bulb
• Variable speed DC drive unit
• Facility to tilt the dust pickup tube
• Control panel for the above
